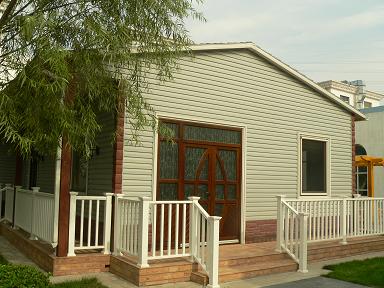

Prefabricated House

Description:

1. Except in special units stated elevation of m, the other size units are mm;
2. Housing wall panels with 75mm thick Sandwich board; interior panels with 50mm thick;Sandwich board; roof with 75mm thick corrugated composite plate;
3.M-1, right outside the door, specification 900mm * 2100mm, single open security doors;
M-2, right inside the door, specification 750mm * 2000mm, composite panel sets of the CD door;
M-3, left hand inside the door, specification 750mm * 2000mm, composite panel sets of the CD door;
C-1, PVC sliding sash, specification 1200mm * 1200mm, windows at the end of the high 1000mm;
C-2, PVC sliding sash, specifications for 940mm * 500mm, the high windows at the end of 1800mm.

Specification:

Sort

Item

Specification

Dimension

Length

No limited

Width

Not more than 15m

Slope of the roof

5-15 degree

Storey

Not more than 3 storey

Height

Not higher than 3.3m for every storey

Standard
Accessory

Wallboard

75-150mm thickness double surface color steel sandwich panel,color: white.

Roofboard

75-150mm thickness double surface color steel sandwich panel,color: blue or red.

Door

Plastic-steel casement door

Window

Plastic-steel sliding window

Truss

Gable frame truss is welded by square steel tube,the space between two trusses is 2.0m-4.0m, Material:Q235, all the house frame rust proofing treatment and cover anti-rust coat.

Purline

Adopt square steel tube,the space between two purlines is 1.0m-1.5m, Material:Q235,all the house frame rust proofing treatment and cover anti-rust coat.

Interior pillar

Adopt square steel tube,the space between two pillars is 3.0m-4.0m, Material:Q235, all the component had galvanization treatment.Equiped color steel corrugated parts as the decoration.

Floor slab

Consist of roof girder, storey beam and wood plywwod floor.

Option

Color steel corrugated parts

Aluminum alloy corrugated parts, good decoration effect.

Door

Color steel sandwich door.

Ceiling

Mineral wool soundless panel.

Water Supply and Drainage

It can be designed and constructured by us advanced.

Electricity

It can be designed and installed by us advanced.

Resistance

Bearing Load

50kg/m2

Wind proof

11 grade

Fire proof

B1 grade(fire-resistant materials)

The resistand grade

grade:7 degree
